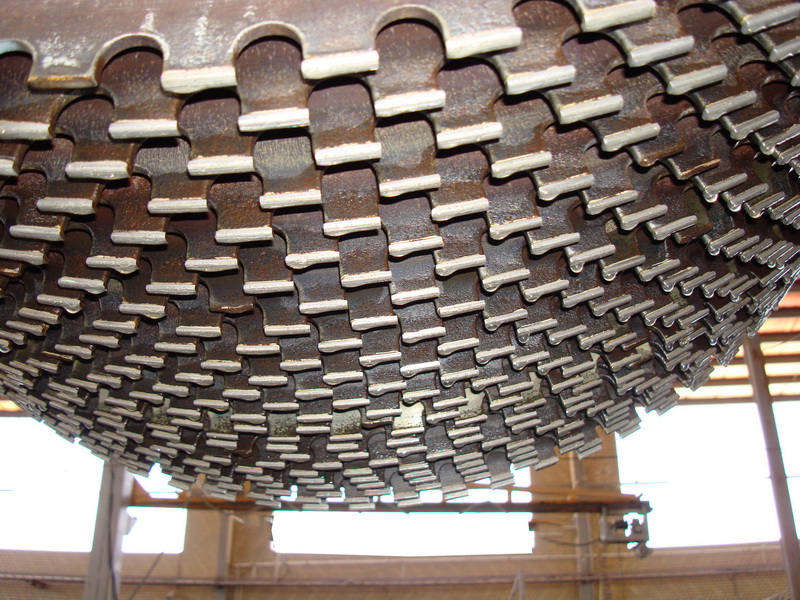

Multi-Blade Diamond Segments for Stones
Model: WSDS-M
Application: Specially designed for high productivity of making granite, marble and sandstone tiles.
Manufacturing Arts: Sintered
Design: Sandwich and Multi-layer
Sizes: 1000-1600MM
Welding method: High frequency brazed (Suggest)
Quality available: High, Medium
Features:
1. Accurate cutting of thin slabs;
2. Fast cutting and long life, stable performance
3. Reduce installation cost
|
Diameter (mm) |
Segment Dimension (mm) |
Core thickness (mm) |
Segment No. (PCS/SET) |
Blade No. (PCS) |
||
|
Length |
Width |
Height |
||||
|
1000 |
24 |
6.0/6.6, 7.1/6.5 |
12/13/15 |
5.0/5.5 |
70 |
15-30 |
|
1200 |
24 |
6.5/7.5, 7.0/7.6 |
12/13/15 |
5.5/6.0 |
80 |
|
|
1600 |
24 |
8.4/9.0 |
12/13/15 |
7.2 |
108 |
|
|
Diameter (mm) |
Segment Dimension (mm) |
Core thickness (mm) |
Segment No. (PCS/SET) |
Blade No. (PCS) |
||
|
Length |
Width |
Height |
||||
|
1000 |
24 |
7.0/7.6, 8.4/9.0 |
12/13/15 |
6.0/7.2 |
88 |
6-12 |
|
1600 |
108 |
|||||
|
Diameter (mm) |
Segment Dimension (mm) |
Core thickness (mm) |
Segment No. (PCS/SET) |
Blade No. (PCS) |
||
|
Length |
Width |
Height |
||||
|
530 |
24 |
7.5/8.1, 8.4/9.0 |
12/13/15 |
6.5/ 7.2 |
54 |
3-6 |
|
740 |
84 |
|||||
|
950 |
88 |
|||||
|
1200 |
92 |
|||||
|
1400 |
96 |
|||||
|
1600 |
108 |
|||||
